PLEASE READ: if you are purchasing these hinges and not purchasing a new gate and hinge panel from us. Make sure you compare your glass to the drawing attached, as if your glass or old hinges don’t match these dimensions they won’t fit (NOTE Width of total gate doesn’t matter)
These hinges are ONLY suited for use with an 8mm gate and 12mm hinge panel.
Key Benefits:

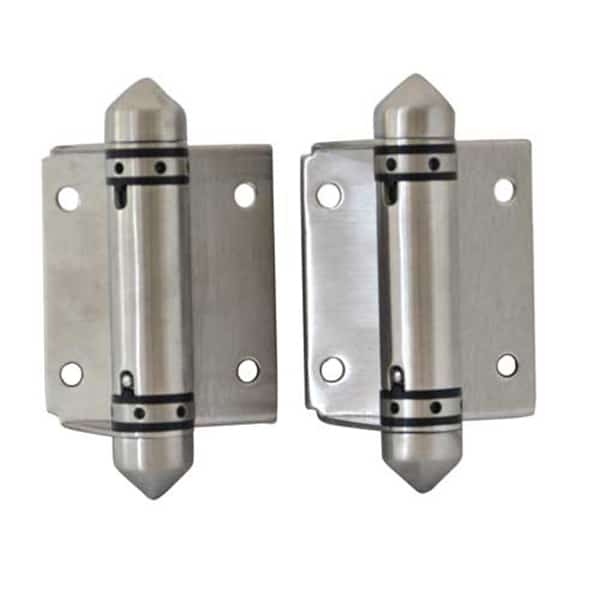

A frameless glass pool gate is only as safe as its hinges. These self-closing spring hinges are what pull the gate shut and hold it latched after every use, the mechanical action that AS1926 exists to guarantee. Manufactured in 2205 duplex grade marine stainless steel, they’re built to keep doing that job reliably in a poolside environment for years, not months.
Each pair comes complete with fixing plates and screws, and is available in Black, Mirror, Satin or White to match your existing hardware and glass fittings.
This is the one detail that catches people out: these hinges are designed for an 8mm gate panel paired with a 12mm hinge panel, and nothing else. The width of the total gate doesn’t matter, but the glass thickness on both panels does.
If you’re replacing existing hinges rather than buying a complete gate and hinge panel from us, compare your glass and current hardware against the specification drawing before ordering. If your glass or existing hinge holes don’t match these dimensions, the new hinges won’t fit. Our team can talk you through your setup if you’re not sure.
At Clear Choice Pool Fencing, safety, compliance and product quality come first. These hinges meet AS1926, the Australian standard for swimming pool safety barriers, and are built specifically for the self-closing, self-latching behaviour that standard requires.
Whether you need supply-only hardware to complete a repair, or full supply and installation across Perth, our team ensures your gate closes and latches the way it’s meant to, every time.
Contact Clear Choice Pool Fencing:
📧 Email: [email protected]
💻 Online Quote: ccpoolfencing.com.au/request-a-quote/
What Happens Next:
We supply and install throughout Perth and selected regional areas, including:
Delivery is available within 80km of Perth CBD, or products can be collected from our Wangara warehouse.
We supply and install throughout Perth and selected regional areas, including:
Delivery is available within 80km of Perth CBD, or products can be collected from our Wangara warehouse.
Rinse the hinges with fresh water to clear chlorine spray, salt residue and dust, especially on coastal properties and frequently used pools.
Check the gate’s self-closing action, confirming it swings shut and latches without manual assistance. Inspect the hinge and fixing screws to make sure they remain secure and are not working loose.
| Material | 2205 duplex grade marine stainless steel |
| Action | Self-closing, self-latching spring hinge |
| Sold As | Pair, includes fixing plates and screws |
| Glass Compatibility | 8mm gate panel and 12mm hinge panel only |
| Finish Options | Black, Mirror, Satin, White |
| Australian Standards | AS1926 compliant |
| Price Range | $70.00 – $85.00 (depending on finish) |
We service Joondalup, Wanneroo, Yanchep to Mandurah and all Perth metro areas. Delivery is within 80km of Perth city or pickup from Wangara warehouse.
Fremantle, Melville, Applecross, Booragoon, Murdoch, Willetton, Canning Vale, Thornlie, Gosnells, Armadale, Kelmscott, Rockingham, Mandurah
We cover the Perth metropolitan area. Regional quotes available.
Only if your gate uses an 8mm gate panel and a 12mm hinge panel. Compare your glass and existing hinge holes to the specification drawing before ordering, as gate width doesn’t affect fit but panel thickness does.
Yes. They’re AS1926 compliant, the standard covering swimming pool safety barriers and the self-closing, self-latching behaviour required of a compliant gate.
Match the finish to your existing hardware and glass fittings. Black, Mirror, Satin and White are all available; our team can advise if you’re unsure which suits your setup.
DIY installation is possible for experienced installers who understand AS1926 compliance requirements. Professional installation is recommended to ensure the gate is correctly hung and self-closing to standard. Contact us for a supply-and-install quote.
